11IR18NPT-TC
Internal thread turning insert. Inscribed circle diameter 6.35 mm; Thickness 3 mm.
Price and availability to be confirmed in the quotation.

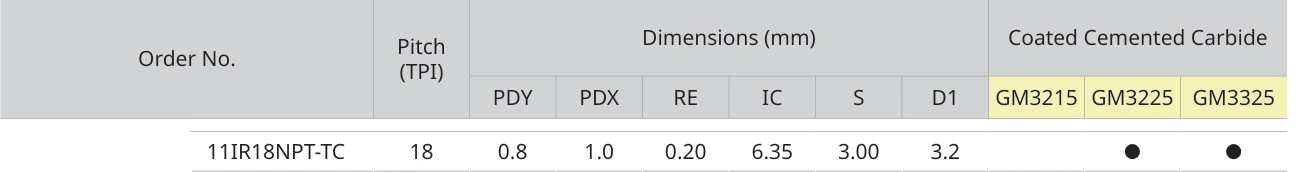

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 280 · View full tableDrawing and dimensions
Data for 11IR18NPT-TC
See the original PDF for this variant's drawing.
Documented data
- Pitch
- PDY
- PDX
- RE
- IC
- S
- D1
- Pitch (threads per inch)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 280 of the original PDF ↗
