11IRA60-TC
Internal thread turning insert with a 60° profile. Thread pitch 0.5-1.5 mm; Inscribed circle diameter 6.35 mm; Thickness 3 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 274 · View full tableDrawing and dimensions

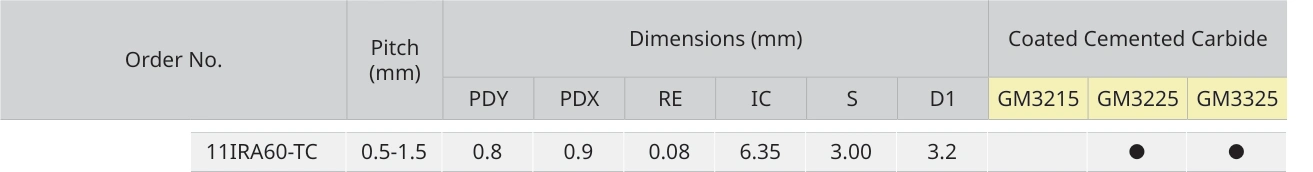

Data for 11IRA60-TC
See the original PDF for this variant's drawing.
Documented data
- PDY
- PDX
- RE
- IC
- S
- D1
- Pitch (mm)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
