Threading / Technical reference

22IR4RD

Name: 22IR4RD
Brand: GESAC
SKU: 22IR4RD

Internal thread turning insert. Inscribed circle diameter 12.7 mm; Thickness 4.71 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

Data for 22IR4RD

See the original PDF for this variant's drawing.

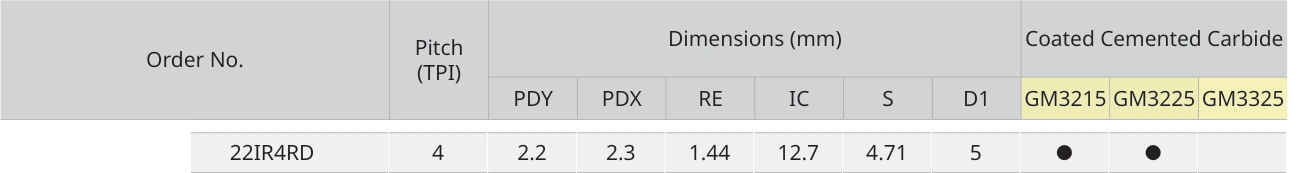

Original headers and row for 22IR4RD. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.

4

2.2

2.3

1.44

12.7

4.71

5

4
