Milling / Technical reference
ADGT180640R-SM
Indexable milling insert for shoulder milling. Thickness 6.4 mm; Nose radius 4 mm.
Price and availability to be confirmed in the quotation.

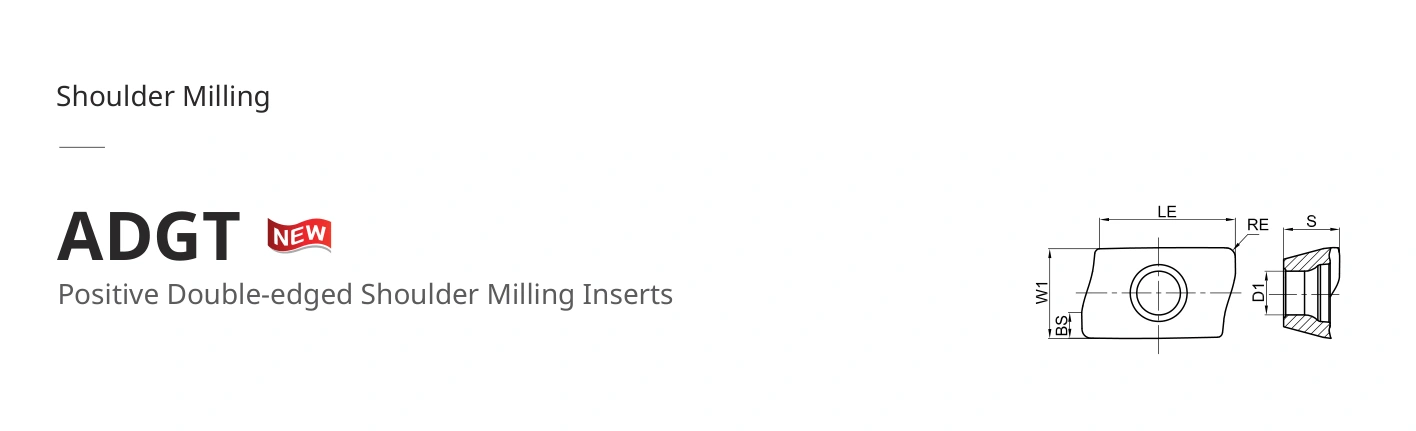

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 50 · View full tableDrawing and dimensions
Data for ADGT180640R-SM
Dimensions
- LE (mm)
- W1 (mm)
- S (mm)
- BS (mm)
- D1 (mm)
- RE (mm)
Row data
- Coated cemented carbide · GSM7130
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 50 of the original PDF ↗
