CCMT120408-GP

Name: CCMT120408-GP
Brand: GESAC
SKU: CCMT120408-GP

Positive turning insert, 80° rhombic, with hole. Inscribed circle diameter 12.7 mm; Thickness 4.76 mm; Nose radius 0.8 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

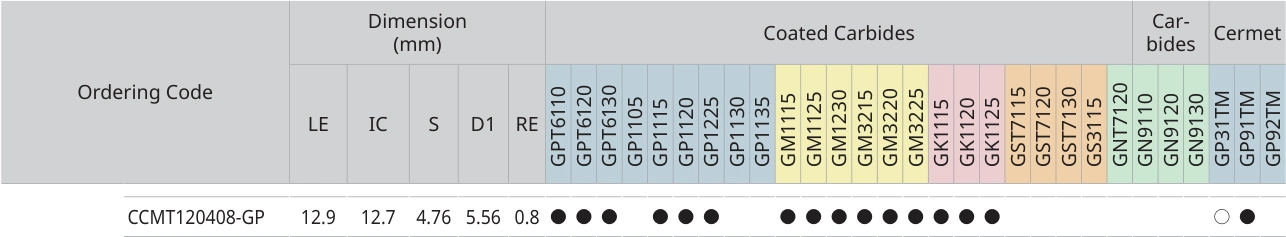

Data for CCMT120408-GP

Original headers and row for CCMT120408-GP. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
