Milling / Technical reference
CNEU070515-KM
Indexable milling insert for slot milling. Inscribed circle diameter 7.6 mm; Thickness 5 mm; Nose radius 1.5 mm.
Price and availability to be confirmed in the quotation.

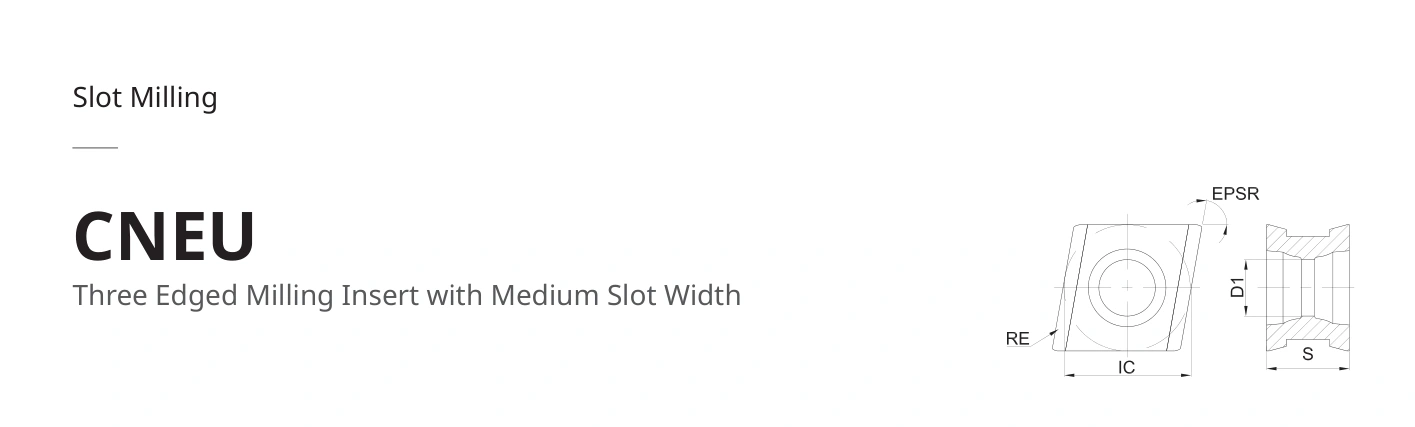

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 95 · View full tableDrawing and dimensions
Data for CNEU070515-KM
Dimensions
- 7.6 (mm)
- 80 (°)
- 5 (mm)
- 3.4 (mm)
Row data
- RE · 0.8
- Coated cemented carbide · GK4125 · ●
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 95 of the original PDF ↗
