CNMA120408
Negative turning insert, 80° rhombic, with hole. Inscribed circle diameter 12.7 mm; Thickness 4.76 mm; Nose radius 0.8 mm.
Price and availability to be confirmed in the quotation.

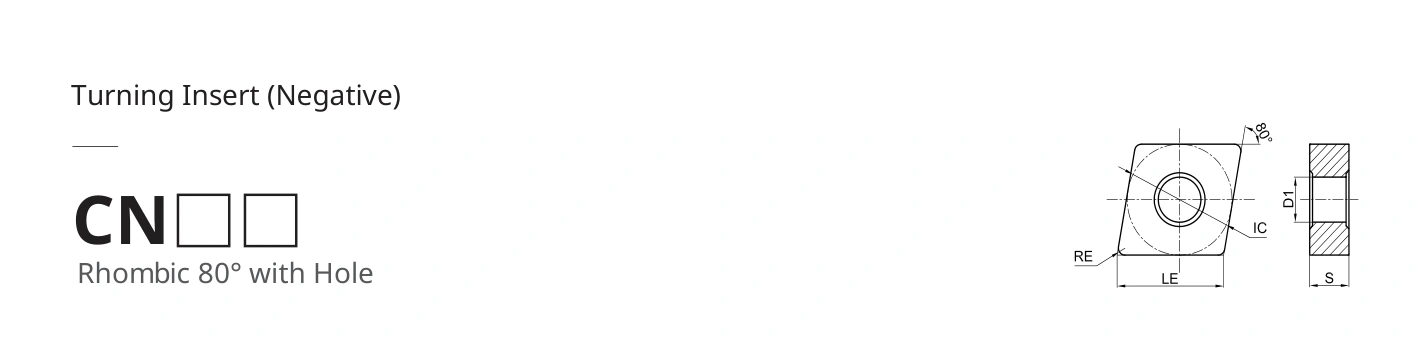

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 40 · View full tableDrawing and dimensions
Data for CNMA120408
Dimensions
- LE (mm)
- IC (mm)
- S (mm)
- D1 (mm)
- RE (mm)
Row data
- Coated carbides · GK1115
- Coated carbides · GK1120
- Coated carbides · GK1125
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
