CNMG090304-QF
Negative turning insert, 80° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 3.18 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.

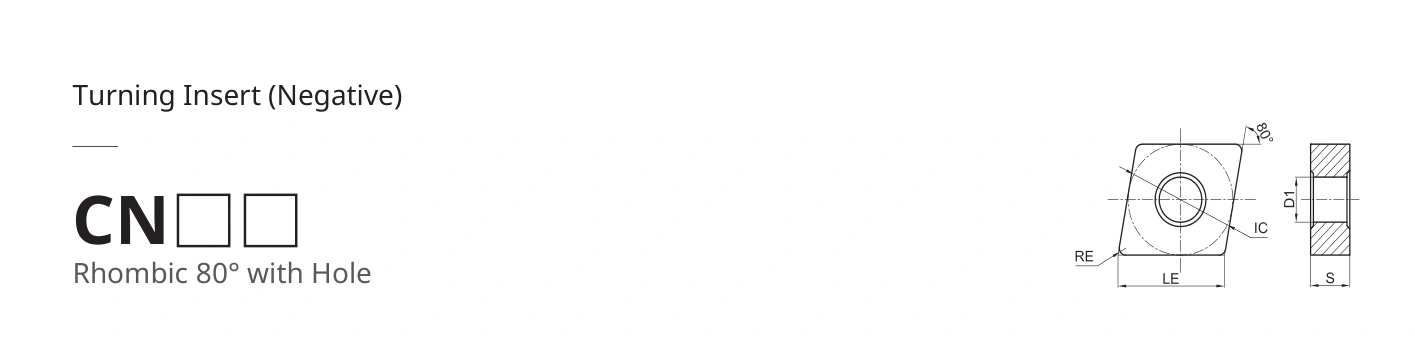

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 36 · View full tableDrawing and dimensions
Data for CNMG090304-QF
Dimensions
- LE (mm)
- IC (mm)
- S (mm)
- D1 (mm)
- RE (mm)
Row data
- Coated carbides · GP1115
- Coated carbides · GP1225
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
