DCMT070202-MM
Positive turning insert, 55° rhombic, with hole. Inscribed circle diameter 6.35 mm; Thickness 2.38 mm; Nose radius 0.2 mm.
Price and availability to be confirmed in the quotation.

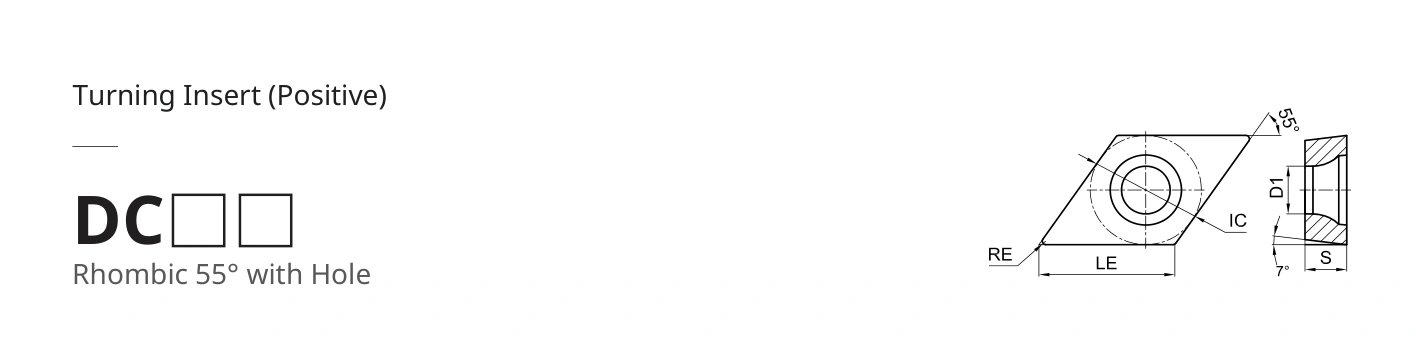

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 62 · View full tableDrawing and dimensions
Data for DCMT070202-MM
Dimensions
- LE (mm)
- IC (mm)
- S (mm)
- D1 (mm)
- RE (mm)
Row data
- Coated carbides · GPT6110
- Coated carbides · GPT6120
- Coated carbides · GPT6130
- Coated carbides · GM1115
- Coated carbides · GM3220
- Coated carbides · GM3225
- Cermet · GP31TM
- Cermet · GP91TM
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
