DNMG110404-QM
Negative turning insert, 55° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 4.76 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.

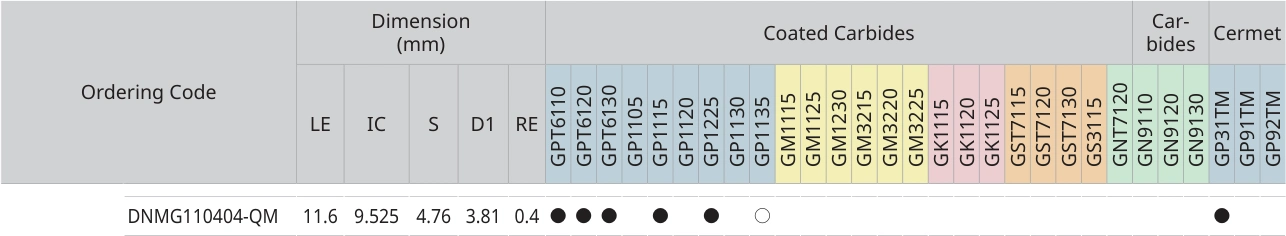

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 42 · View full tableDrawing and dimensions
Data for DNMG110404-QM
Documented data
- LE
- IC
- S
- D1
- RE
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
