ET128-HJN-120175C-P5
Straight flute tap, for cast iron. Metric thread M12×1.75. Threaded length 29 mm; Shank diameter 8.5 mm; Active length 46 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 162 · View full tableDrawing and dimensions

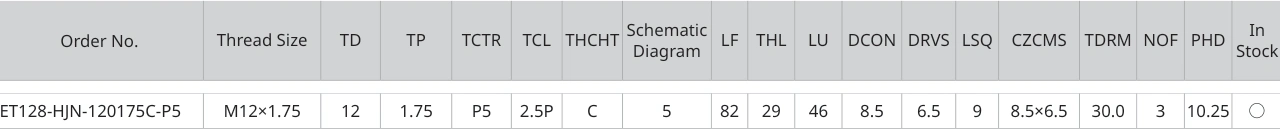

Data for ET128-HJN-120175C-P5
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
