Threading / Technical reference
ET128-HJN-160150C-P5
Straight flute tap, for cast iron. Metric thread M16×1.5. Threaded length 20 mm; Shank diameter 12.5 mm; Active length 52 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 162 · View full tableDrawing and dimensions

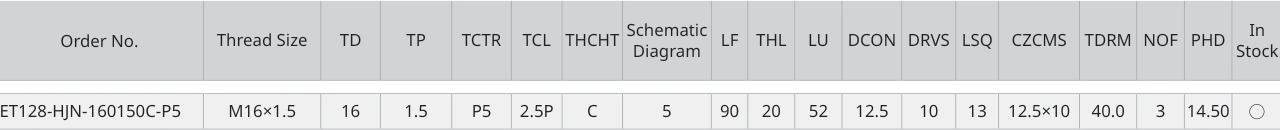

Data for ET128-HJN-160150C-P5
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 162 of the original PDF ↗
