ET128-HJR-120100C-P4
Straight flute tap, for cast iron, with internal coolant supply. Metric thread M12×1. Threaded length 29 mm; Shank diameter 8.5 mm; Active length 46 mm.
Price and availability to be confirmed in the quotation.

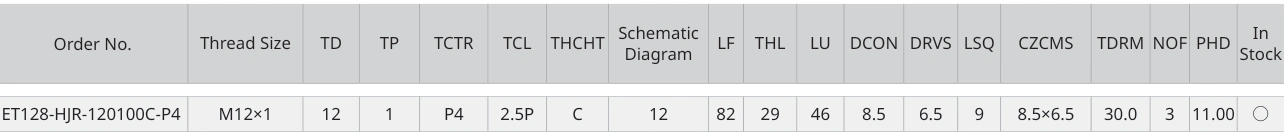

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 163 · View full tableDrawing and dimensions
Data for ET128-HJR-120100C-P4
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 163 of the original PDF ↗
