Threading / Technical reference
ET138-PJN-010025B-P1
Spiral point tap, for steel. Metric thread M1×0.25. Threaded length 4.5 mm; Shank diameter 3 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 150 · View full tableDrawing and dimensions

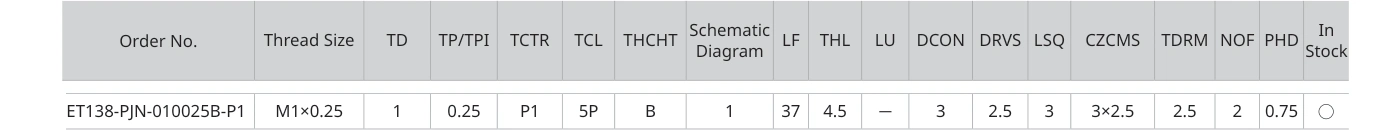

Data for ET138-PJN-010025B-P1
Documented data
- THL
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 150 of the original PDF ↗
