ET138-PJN-040070B-P2
Spiral point tap, for steel. Metric thread M4×0.7. Threaded length 14 mm; Shank diameter 5 mm; Active length 21 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 150 · View full tableDrawing and dimensions

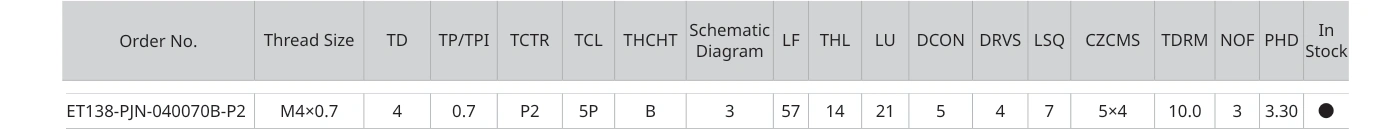

Data for ET138-PJN-040070B-P2
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 150 of the original PDF ↗
