ET138-PJN-U540B-P2
Spiral point tap, for steel. Threaded length 12 mm; Shank diameter 4 mm; Active length 19 mm.
Price and availability to be confirmed in the quotation.

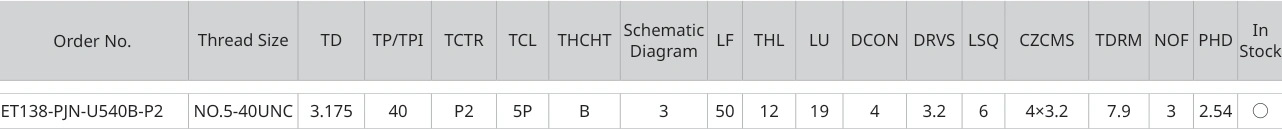

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 151 · View full tableDrawing and dimensions
Data for ET138-PJN-U540B-P2
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 151 of the original PDF ↗
