ET138-SJN-100150C-P4
Spiral flute tap, for steel. Metric thread M10×1.5. Threaded length 15 mm; Shank diameter 7 mm; Active length 43 mm.
Price and availability to be confirmed in the quotation.

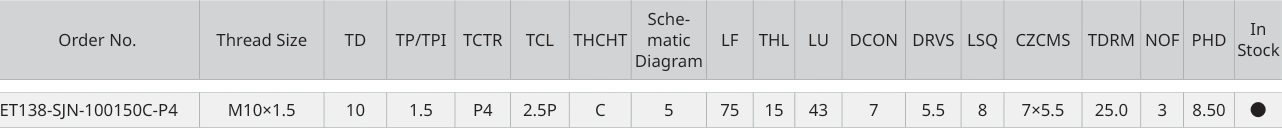

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 149 · View full tableDrawing and dimensions
Data for ET138-SJN-100150C-P4
Documented data
- THL
- LU
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
