ET166-PJN-010025B-P1
Spiral point tap, for copper and aluminium. Metric thread M1×0.25. Threaded length 4.5 mm; Shank diameter 3 mm.
Price and availability to be confirmed in the quotation.

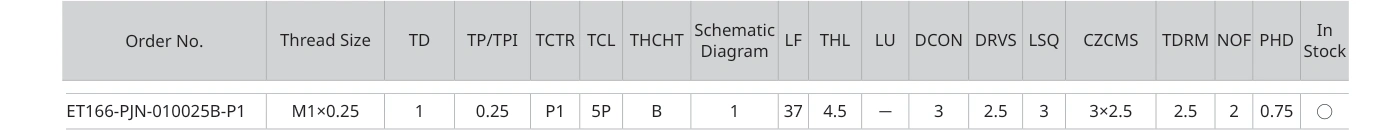

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 160 · View full tableDrawing and dimensions
Data for ET166-PJN-010025B-P1
Documented data
- THL
- DCON
- DRVS
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
