Threading / Technical reference
ET168-PJN-030050B-P2
Spiral point tap, for stainless steel. Metric thread M3×0.5. Threaded length 12 mm; Shank diameter 4 mm; Active length 19 mm.
Price and availability to be confirmed in the quotation.

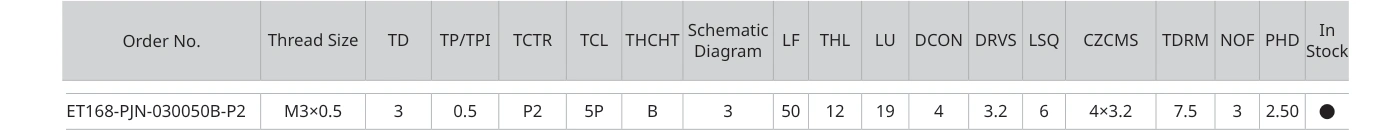

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 155 · View full tableDrawing and dimensions
Data for ET168-PJN-030050B-P2
Documented data
- THL
- 12
- LU
- 19
- DCON
- 4
- DRVS
- 3.2
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 155 of the original PDF ↗
