Holemaking / Technical reference
GBR-DZR2D033-042-TC1190
Insert holder for boring. Overall length 24 mm. For inserts TCMT1102.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 97 · View full tableDrawing and dimensions

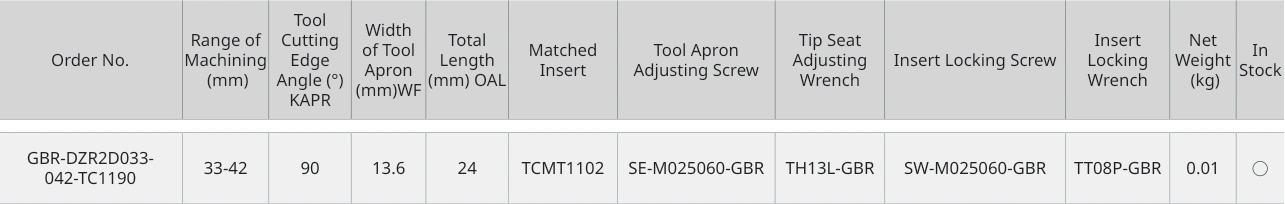

Data for GBR-DZR2D033-042-TC1190
Documented data
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 97 of the original PDF ↗
