Holemaking / Technical reference
GBR-DZR7D090-110-SC0945
Insert seat for rough boring. Overall length 75 mm. For inserts SCMT09T3.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 97 · View full tableDrawing and dimensions

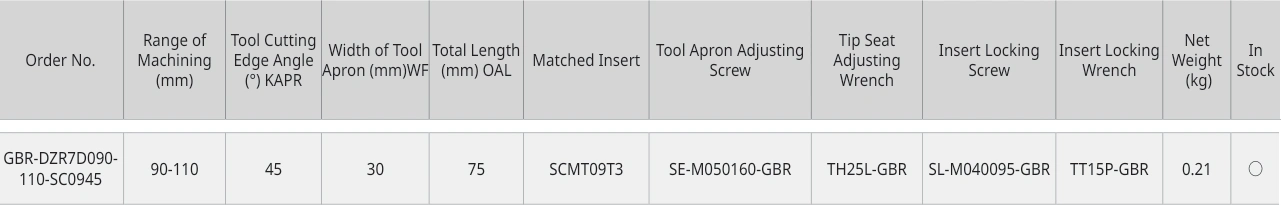

Data for GBR-DZR7D090-110-SC0945
Documented data
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 97 of the original PDF ↗
