GBR-DZR8D110-133-TC1690
Insert seat for rough boring. Overall length 85 mm. For inserts TCMT16T3.
Price and availability to be confirmed in the quotation.

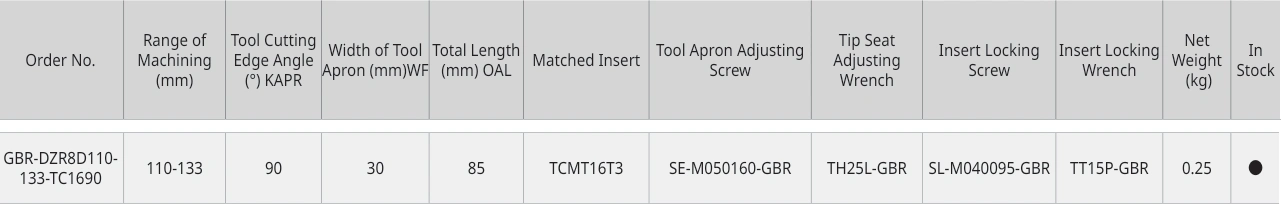

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 97 · View full tableDrawing and dimensions
Data for GBR-DZR8D110-133-TC1690
Documented data
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
