GBR-EXC90L105
Tool extension bar. Connection diameter 88 mm; Functional length 105 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 101 · View full tableDrawing and dimensions

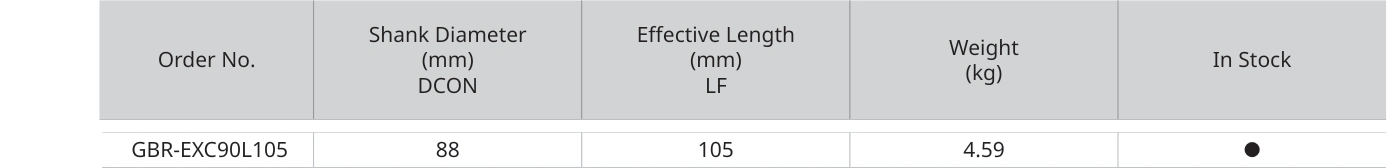

Data for GBR-EXC90L105
See the original PDF for this variant's drawing.
Documented data
- DCON
- LF
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 101 of the original PDF ↗
