Holemaking / Technical reference
GBR-HSKA100LB-C32L150
Boring tool shank. Connection diameter 100 mm; Functional length 150 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 107 · View full tableDrawing and dimensions

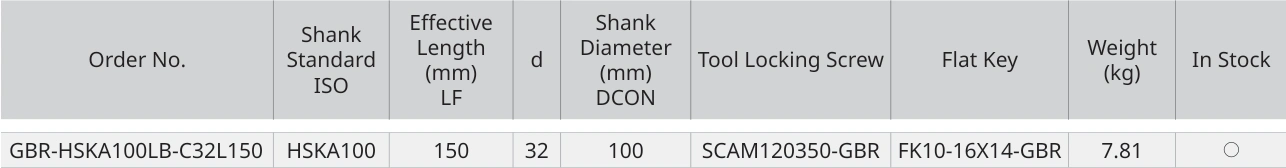

Data for GBR-HSKA100LB-C32L150
See the original PDF for this variant's drawing.
Documented data
- d
- DCON
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 107 of the original PDF ↗
