GBR-MB10D16-18L48TP11
Fine boring bar. Connection diameter 10 mm; Functional length 48 mm; Overall length 78 mm. For inserts TPGH1103.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 100 · View full tableDrawing and dimensions

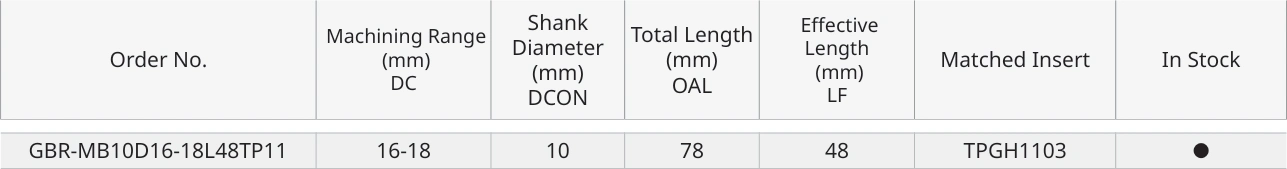

Data for GBR-MB10D16-18L48TP11
Documented data
- DCON
- OAL
- LF
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 100 of the original PDF ↗
