GBR-MB16D10-12L75WB06K
Fine boring bar. Connection diameter 16 mm; Functional length 75 mm; Overall length 115 mm. For inserts WBGT0601.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 101 · View full tableDrawing and dimensions

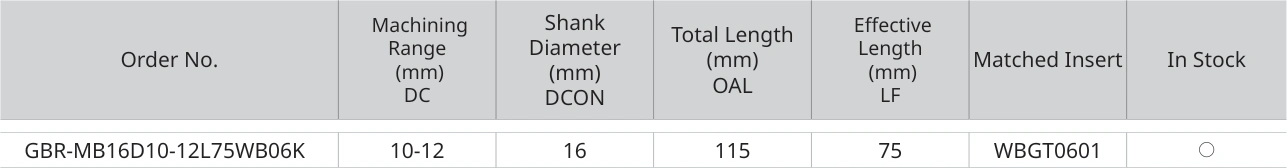

Data for GBR-MB16D10-12L75WB06K
Documented data
- DCON
- OAL
- LF
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
