Parting off and grooving / Technical reference
GTD198C020-FG
Grooving insert. Cutting width 1.98 mm; Nose radius 0.20 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 210 · View full tableDrawing and dimensions

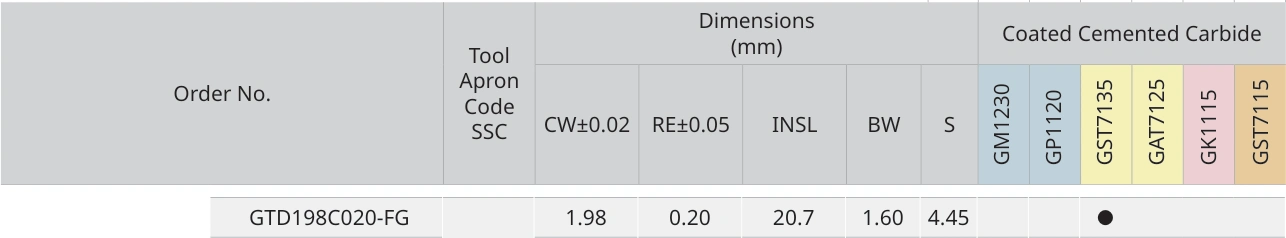

Data for GTD198C020-FG
See the original PDF for this variant's drawing.
Documented data
- CW
- RE
- INSL
- BW
- S
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 210 of the original PDF ↗
