Parting off and grooving / Technical reference

GTD396F198-OR

Name: GTD396F198-OR
Brand: GESAC
SKU: GTD396F198-OR

Profile turning insert. Cutting width 3.96 mm; Nose radius 1.98 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

Data for GTD396F198-OR

See the original PDF for this variant's drawing.

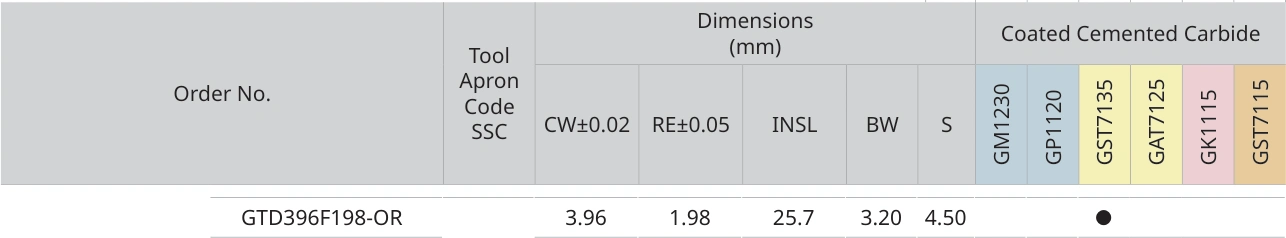

Original headers and row for GTD396F198-OR. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
