Parting off and grooving / Technical reference
GTD450F225-OR
Profile turning insert. Nose radius 2.25 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 218 · View full tableDrawing and dimensions

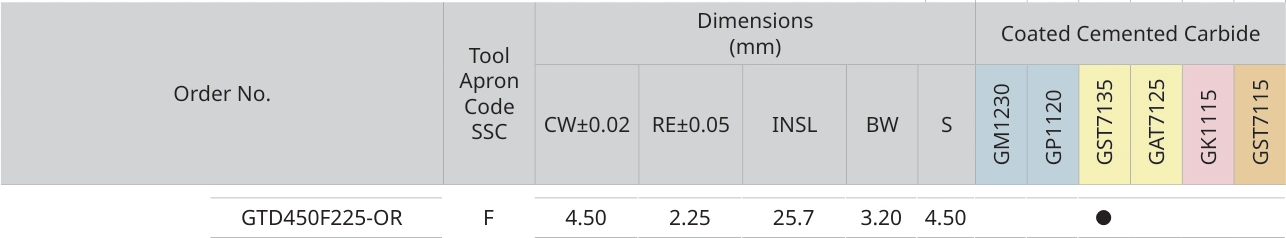

Data for GTD450F225-OR
See the original PDF for this variant's drawing.
Documented data
- RE
- INSL
- BW
- S
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 218 of the original PDF ↗
