Parting off and grooving / Technical reference

GTD500F020-FG

Name: GTD500F020-FG
Brand: GESAC
SKU: GTD500F020-FG

Grooving insert. Cutting width 5 mm; Nose radius 0.20 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

Data for GTD500F020-FG

See the original PDF for this variant's drawing.

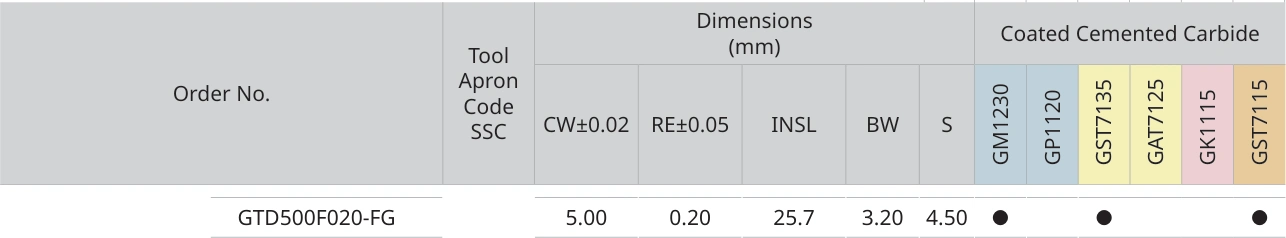

Original headers and row for GTD500F020-FG. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
