HNGU0905ANEN-GL
Indexable milling insert for face milling. Inscribed circle diameter 15.88 mm; Thickness 5.52 mm; Nose radius 2.2 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 35 · View full tableDrawing and dimensions

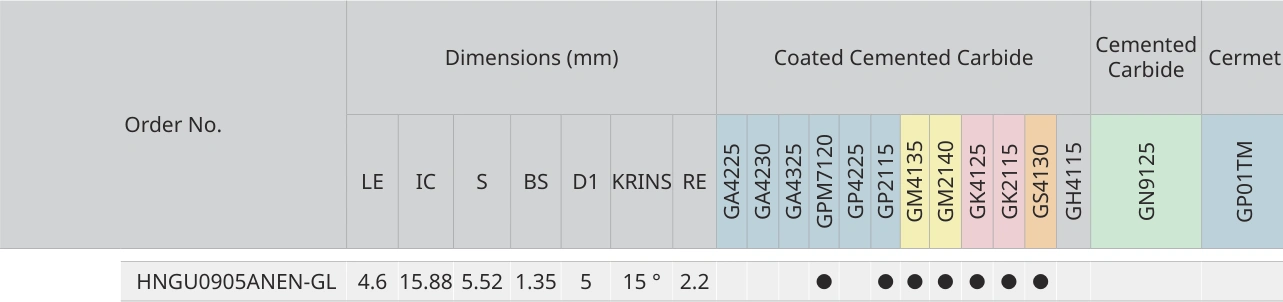

Data for HNGU0905ANEN-GL
See the original PDF for this variant's drawing.
Documented data
- LE
- IC
- S
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 35 of the original PDF ↗
