Milling / Technical reference
LNMX120705-GM
Indexable milling insert for high-feed milling. Thickness 4.2 mm; Nose radius 1.5 mm.
Price and availability to be confirmed in the quotation.

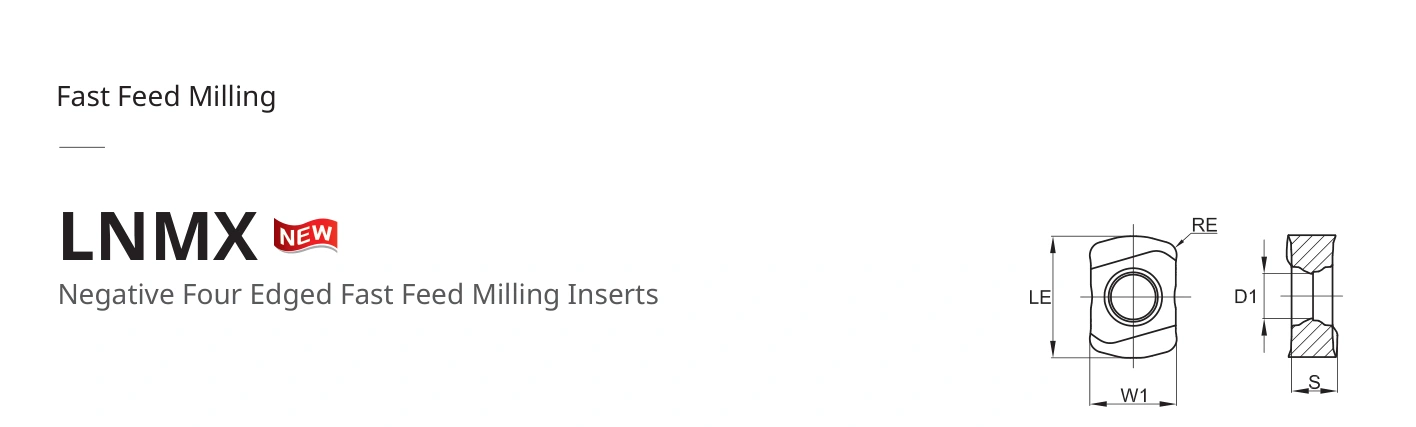

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 89 · View full tableDrawing and dimensions
Data for LNMX120705-GM
Dimensions
- LE (mm)
- W1 (mm)
- S (mm)
- D1 (mm)
- RE (mm)
Row data
- Coated cemented carbide · GPM7120
- Coated cemented carbide · GP2115
- Coated cemented carbide · GM4135
- Coated cemented carbide · GM2140
- Coated cemented carbide · GK4125
- Coated cemented carbide · GK2115
- Coated cemented carbide · GS4130
- Coated cemented carbide · GSM7130
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 89 of the original PDF ↗
