MEB190-080R08A27-AP11
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 80 mm; Connection diameter 27 mm; Functional length 50 mm. 8 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 47 · View full tableDrawing and dimensions

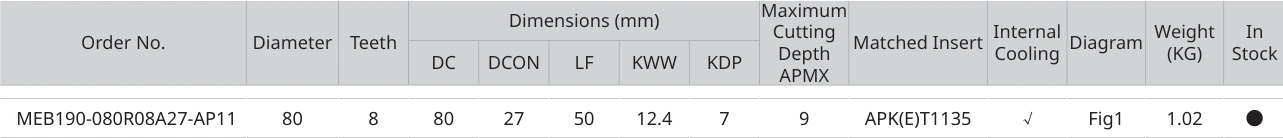

Data for MEB190-080R08A27-AP11
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DC
- DCON
- LF
- KWW
- KDP
- APMX
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
