MEC190-032R03W32-AN16L
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 32 mm; Connection diameter 32 mm; Functional length 200 mm. 3 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 60 · View full tableDrawing and dimensions

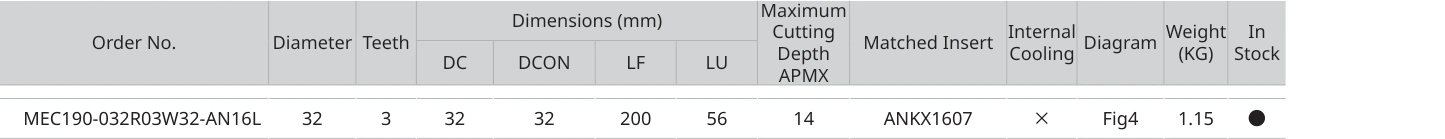

Data for MEC190-032R03W32-AN16L
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DC
- DCON
- LF
- LU
- APMX
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 60 of the original PDF ↗
