MEE190-125R07B40-WN08U
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 125 mm; Connection diameter 40 mm; Functional length 63 mm. 7 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 63 · View full tableDrawing and dimensions
Data for MEE190-125R07B40-WN08U
See the original PDF for this variant's drawing.

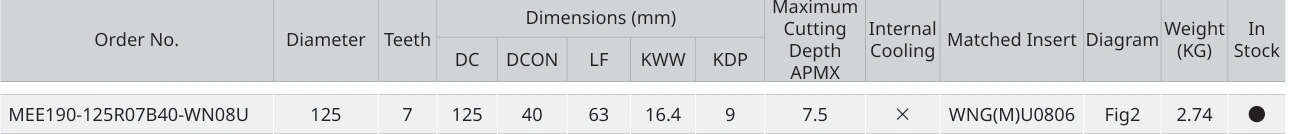

Documented data
- Diameter
- Teeth
- DC
- DCON
- LF
- KWW
- KDP
- APMX
- Matched insert
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
