MES190-315R15D60-SD14
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 315 mm; Connection diameter 60 mm; Functional length 80 mm. 15 cutting positions.
Price and availability to be confirmed in the quotation.

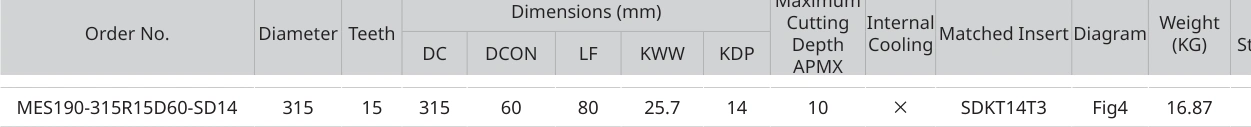

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 55 · View full tableDrawing and dimensions
Data for MES190-315R15D60-SD14
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DC
- DCON
- LF
- KWW
- KDP
- APMX
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 55 of the original PDF ↗
