MET190-016R02M08-AD10

Name: MET190-016R02M08-AD10
Brand: GESAC
SKU: MET190-016R02M08-AD10

Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 16 mm; Connection diameter 8.5 mm; Functional length 28 mm. 2 cutting positions.

Technical advice

Price and availability to be confirmed in the quotation.

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 53 · View full table

Drawing and dimensions

Data for MET190-016R02M08-AD10

See the original PDF for this variant's drawing.

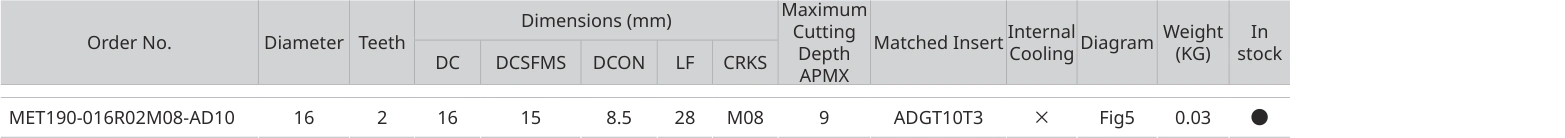

Original headers and row for MET190-016R02M08-AD10. On mobile, swipe to see all columns.

Documented data

Diameter
Teeth
DCON
APMX
Matched insert

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.

View page 53 of the original PDF ↗
