MFB245-160R08C40-SN12U

Name: MFB245-160R08C40-SN12U
Brand: GESAC
SKU: MFB245-160R08C40-SN12U

Milling cutter body for indexable inserts for face milling. Cutting diameter 160 mm; Connection diameter 40 mm; Functional length 63 mm. 8 cutting positions.

Technical advice

Price and availability to be confirmed in the quotation.

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 32 · View full table

Drawing and dimensions

Data for MFB245-160R08C40-SN12U

See the original PDF for this variant's drawing.

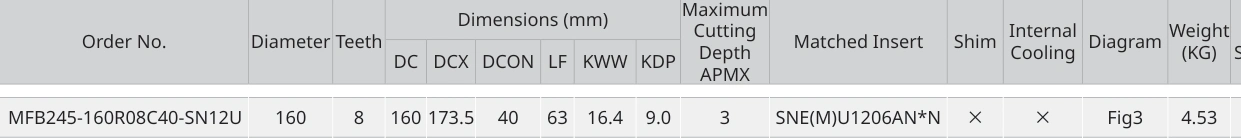

Original headers and row for MFB245-160R08C40-SN12U. On mobile, swipe to see all columns.

Documented data

Diameter
Teeth
DC
DCX
DCON
LF
KWW
KDP
APMX

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.

View page 32 of the original PDF ↗
