MFC145-050R04A22-HN09
Milling cutter body for indexable inserts for face milling. Cutting diameter 50 mm; Connection diameter 22 mm; Functional length 40 mm. 4 cutting positions.
Price and availability to be confirmed in the quotation.

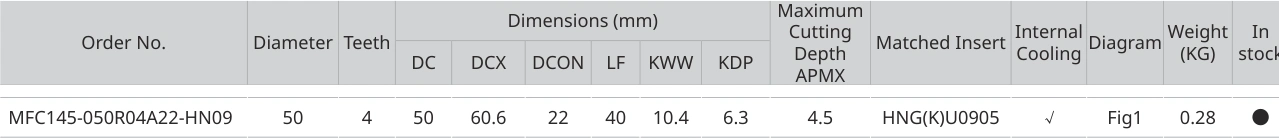

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 37 · View full tableDrawing and dimensions
Data for MFC145-050R04A22-HN09
See the original PDF for this variant's drawing.
Documented data
- Diameter
- Teeth
- DC
- DCX
- DCON
- LF
- KWW
- KDP
- APMX
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
