MFC145-200R16C60-HN09U

Name: MFC145-200R16C60-HN09U
Brand: GESAC
SKU: MFC145-200R16C60-HN09U

Milling cutter body for indexable inserts for face milling. Cutting diameter 200 mm; Connection diameter 60 mm; Functional length 63 mm. 16 cutting positions.

Technical advice

Price and availability to be confirmed in the quotation.

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 38 · View full table

Drawing and dimensions

Data for MFC145-200R16C60-HN09U

See the original PDF for this variant's drawing.

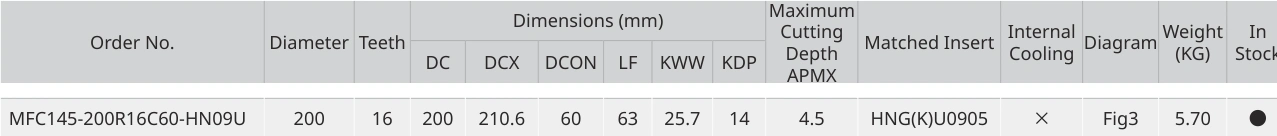

Original headers and row for MFC145-200R16C60-HN09U. On mobile, swipe to see all columns.

Documented data

Diameter
Teeth
DC
DCX
DCON
LF
KWW
KDP
APMX

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.

View page 38 of the original PDF ↗
