MFC145-315R18D60-HN13
Milling cutter body for indexable inserts for face milling. Cutting diameter 315 mm; Connection diameter 60 mm; Functional length 80 mm. 18 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 38 · View full tableDrawing and dimensions

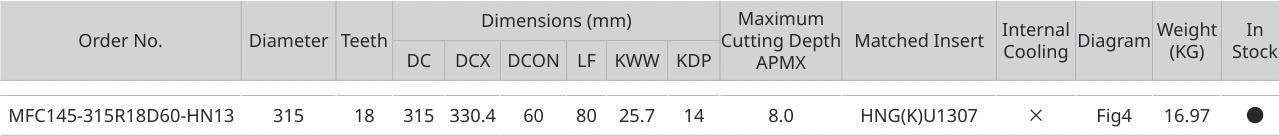

Data for MFC145-315R18D60-HN13
See the original PDF for this variant's drawing.
Documented data
- Diameter
- 315
- Teeth
- 18
- DC
- 315
- DCX
- 330.4
- DCON
- 60
- LF
- 80
- KWW
- 25.7
- KDP
- 14
- APMX
- 8.0
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
