MFC160-040R05A16-HN06
Milling cutter body for indexable inserts for face milling. Cutting diameter 40 mm; Connection diameter 16 mm; Functional length 40 mm. 5 cutting positions.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 40 · View full tableDrawing and dimensions
Data for MFC160-040R05A16-HN06
See the original PDF for this variant's drawing.

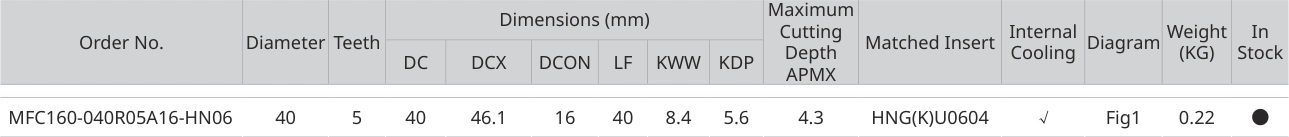

Documented data
- Diameter
- Teeth
- DC
- DCX
- DCON
- LF
- KWW
- KDP
- APMX
- Weight (kg)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
