ODMT060508-GM
Indexable milling insert for face milling. Inscribed circle diameter 15.875 mm; Thickness 5.56 mm; Nose radius 0.8 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 21 · View full tableDrawing and dimensions

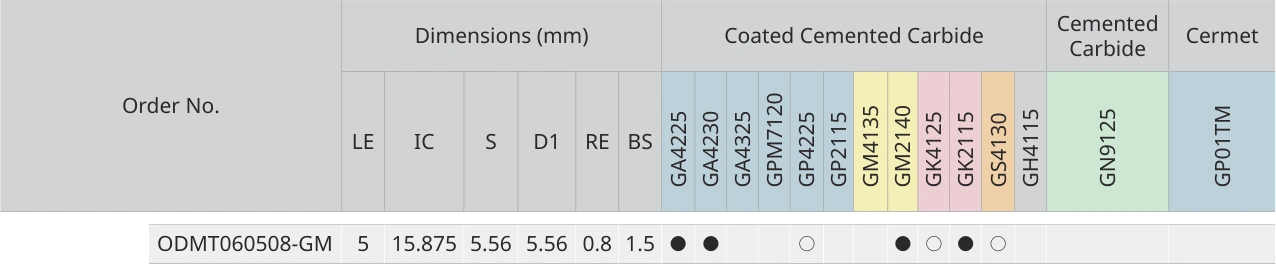

Data for ODMT060508-GM
See the original PDF for this variant's drawing.
Documented data
- LE
- IC
- S
- D1
- RE
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
