Turning / Technical reference
PCBNR/L3232P12
External turning toolholder. Functional length 170 mm; Height H 32 mm; Width B 32 mm. For inserts CN**1204**.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 167 · View full tableDrawing and dimensions
Data for PCBNR/L3232P12
See the original PDF for this variant's drawing.

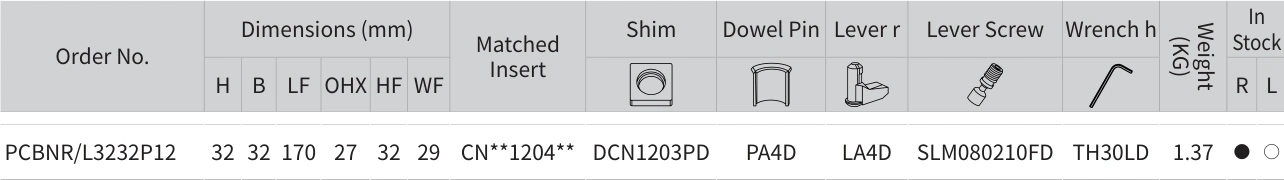

Documented data
- H
- B
- LF
- Matched insert
- Weight (kg)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 167 of the original PDF ↗
