PCLNR/L3225P16
External turning toolholder. Functional length 170 mm; Height H 32 mm; Width B 25 mm. For inserts CN**1606**.
Price and availability to be confirmed in the quotation.

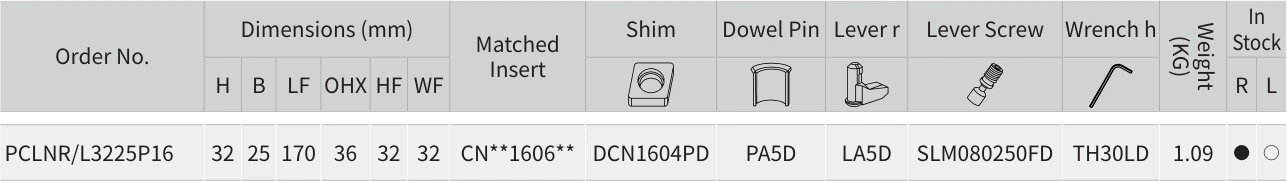

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 168 · View full tableDrawing and dimensions
Data for PCLNR/L3225P16
Documented data
- H
- B
- LF
- Matched insert
- Weight (kg)
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 168 of the original PDF ↗
