QTD3007
Indexable milling insert for profile milling. Inscribed circle diameter 30 mm; Thickness 7 mm; Nose radius 15 mm.
Price and availability to be confirmed in the quotation.

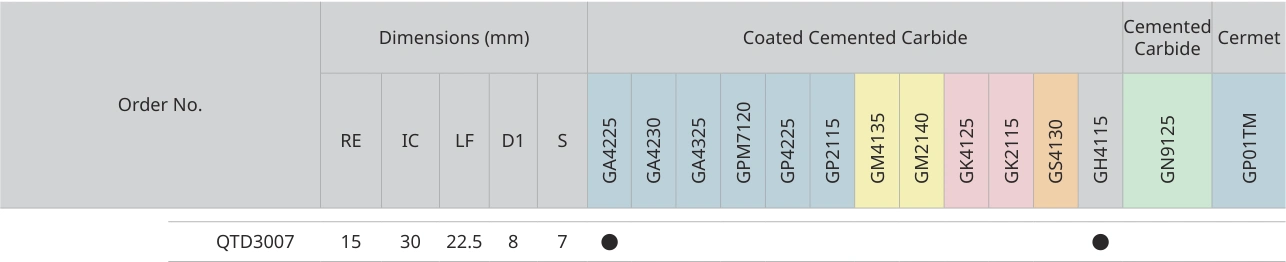

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 75 · View full tableDrawing and dimensions
Data for QTD3007
Documented data
- RE
- IC
- LF
- D1
- S
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
