RDEW0702M0
Indexable milling insert for profile milling. Inscribed circle diameter 7 mm; Thickness 2.38 mm; Nose radius 3.5 mm.
Price and availability to be confirmed in the quotation.

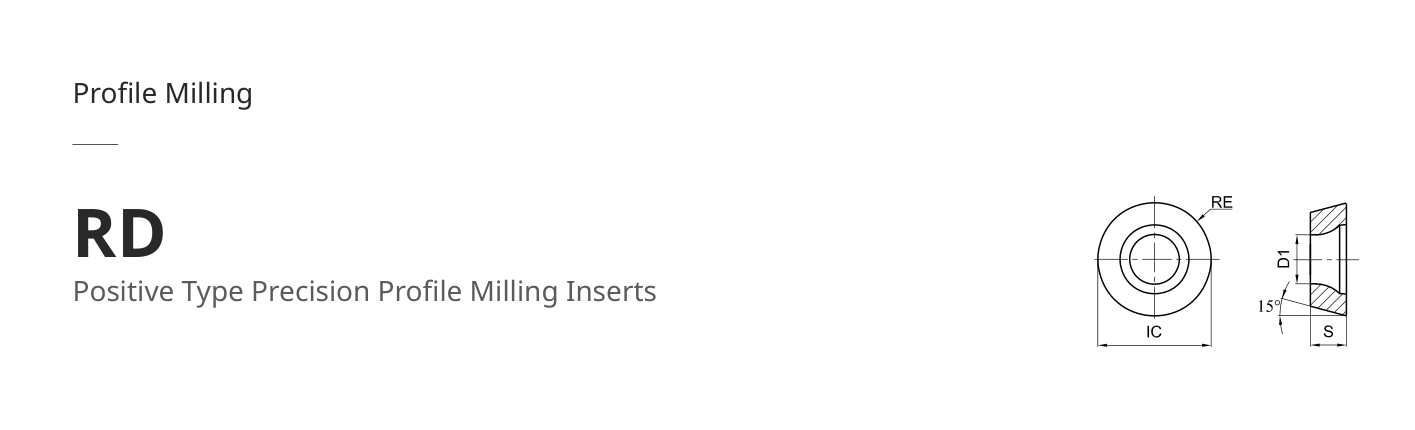

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 68 · View full tableDrawing and dimensions
Data for RDEW0702M0
Dimensions
- IC (mm)
- S (mm)
- RE (mm)
- D1 (mm)
Row data
- Coated cemented carbide · GA4225
- Coated cemented carbide · GA4230
- Coated cemented carbide · GA4325
- Coated cemented carbide · GP4225
- Cermet · GP01TM
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
