RPMW1003M0T
Indexable milling insert for profile milling. Inscribed circle diameter 10 mm; Thickness 3.18 mm; Nose radius 5 mm.
Price and availability to be confirmed in the quotation.

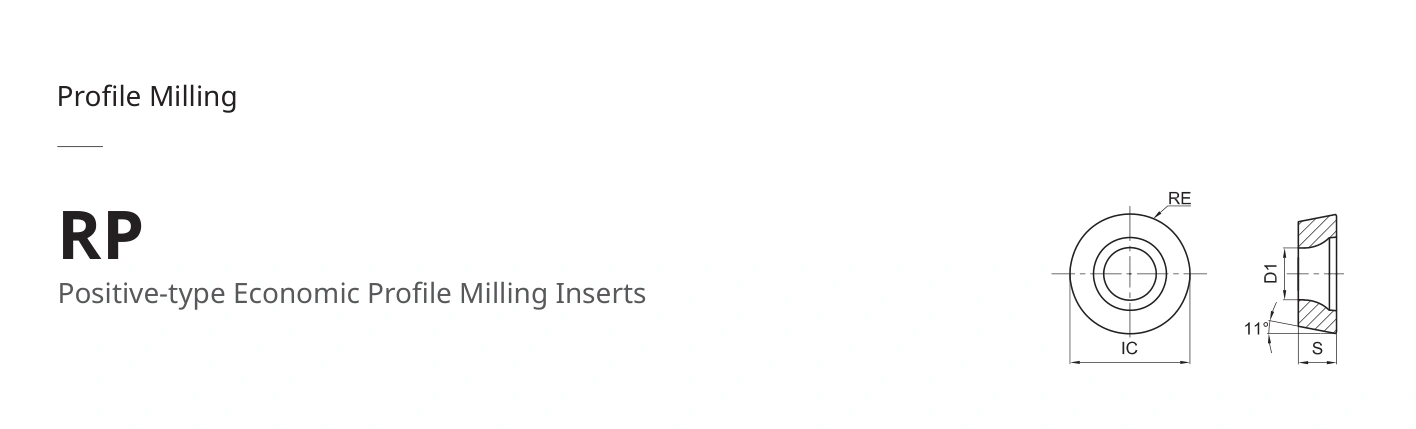

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 70 · View full tableDrawing and dimensions
Data for RPMW1003M0T
Dimensions
- 10 (mm)
- 3.97 (mm)
- 5 (mm)
- 4.4 (mm)
Row data
- Coated cemented carbide · GA4225 · ●
- Coated cemented carbide · GA4230 · ●
- Coated cemented carbide · GA4325 · ●
- Coated cemented carbide · GP4225 · ●
- Coated cemented carbide · GK4125
- Coated cemented carbide · GK2115
- Cermet · GP01TM
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
