S16Q-SVUCR/L11
Internal turning toolholder. Shank diameter 16 mm; Functional length 180 mm; Minimum bore diameter 20 mm. For inserts VC**1103**.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 190 · View full tableDrawing and dimensions

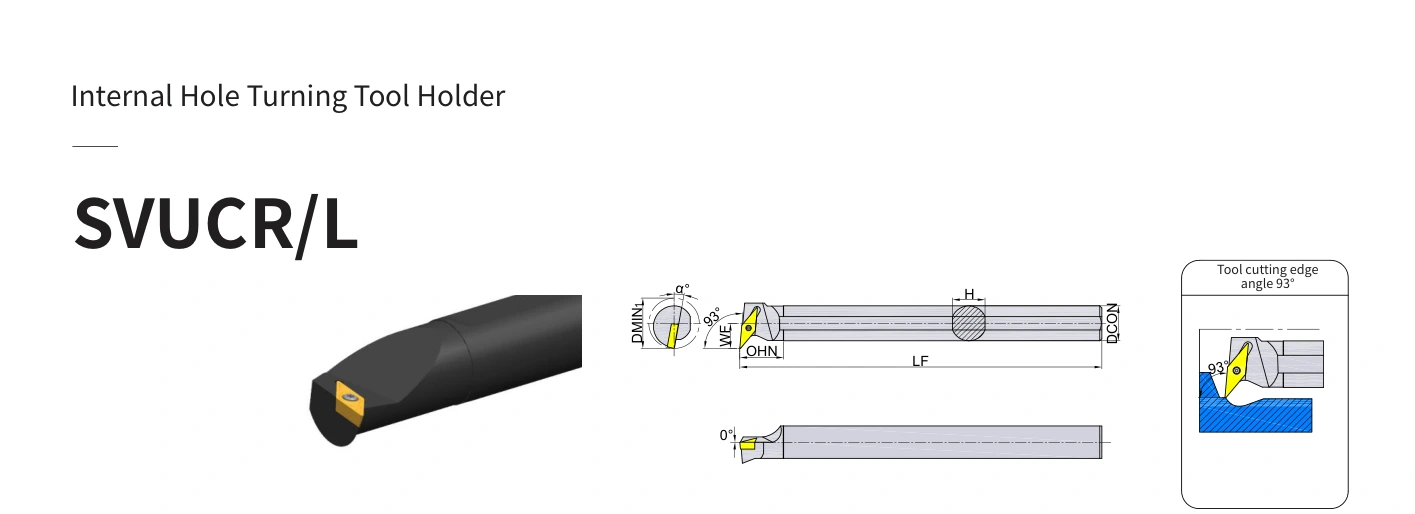

Data for S16Q-SVUCR/L11
Dimensions
- DMIN1 (mm)
- DCON (mm)
- WF (mm)
- LF (mm)
- OHN (mm)
- H (mm)
- α (°)
Compatibility and mounting
- Compatible insert
- Screw
- Wrench
Catalogue information
- Weight (kg)
- Published availability
- Published availability
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 190 of the original PDF ↗
