S16Q-SWLCR/L06
Internal turning toolholder. Shank diameter 16 mm; Functional length 180 mm; Minimum bore diameter 20 mm. For inserts WC**06T3**.
Price and availability to be confirmed in the quotation.

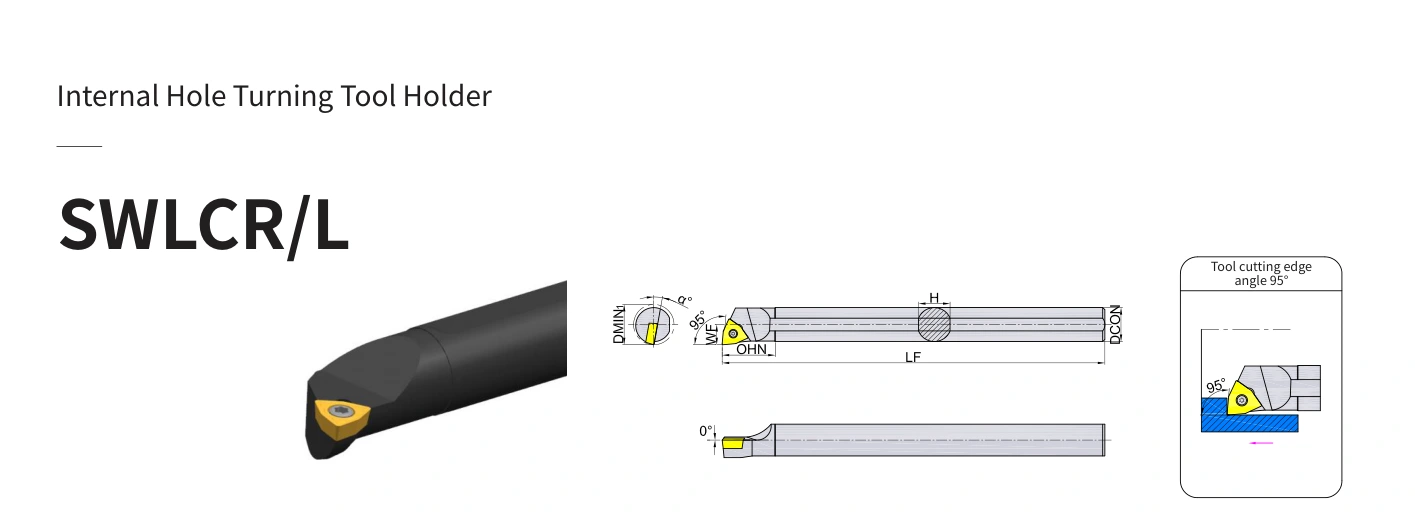

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 191 · View full tableDrawing and dimensions
Data for S16Q-SWLCR/L06
Dimensions
- DMIN1 (mm)
- DCON (mm)
- WF (mm)
- LF (mm)
- OHN (mm)
Catalogue information
- Published availability (mm)
- Published availability (°)
- Published availability
- Published availability
- Published availability
- Weight (kg)
- Published availability
- Published availability
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 191 of the original PDF ↗
